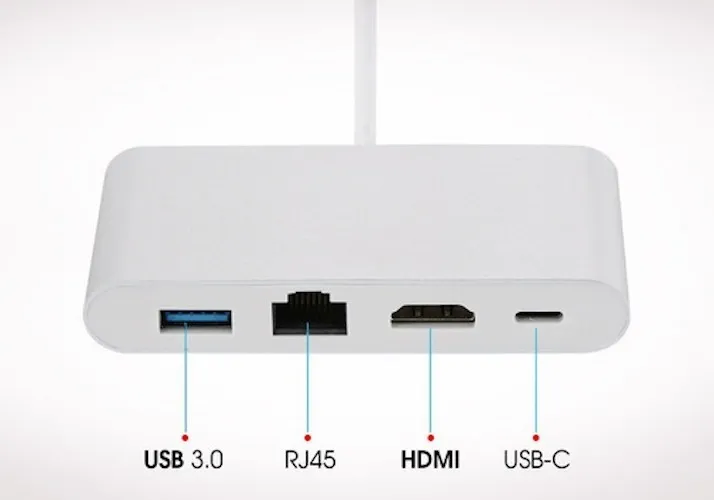

DOCK USB-C x LAN+HDMI+USB 3.0 + USB-C HLCU2AL

Cod. C11331

DOCK USB-C x LAN+HDMI+USB 3.0 + USB-C HLCU2AL

0
COD C11331
  1. ALUM HOUSING
  2. Mirror or extended-display modes to support video resolution up to 1080p@60HZ (1080p)

Or 3840x2160 at 30HZ (4K,FULL UHD)

  1. Video resolution: 640x480,800x600,1024x768,1920x1200,1080p,3840x2160p at 30HZ,4K.
  2. USB-A ports: 5Gbps
  3. 24AWG cable gauge
  4. BUS POWERED

*USB-C PD Charging Port: 60w (20V AT 3A)

*USB-A TOTAL OUTPUT:5V,2A

*Withstanding voltage:300V DC

*Insulation resistance: 10MΩ

*Conductive resistance: 5Ω

  1. CONNECTIONS INPUT

*1x USB-C 24-pin,male



  1. CONNECTIONS OUTPUT

*1xHDMI 19pin,female

*1x 10/100/1000Mbps RJ45, female

*1x USB-A 4-pin, female

*1x USB-C 24-pin, Power delivery, data sync, female



  1. Physical

*Housing:53.5*92*17mm

*Cable Length: 110mm+/-5mm

*Weight:78g



  1. OPERATIN ENVIORMENT

*Operation Temperature: : 0-40?

* Storage Temperature: -20 -60?

* Humidity (noncondensing): 0-96%



  1. SYSTEM REQUIREMENT

Window XP/Vista/7/8.1/10 or Linux or Mac9.x/10.x or above
