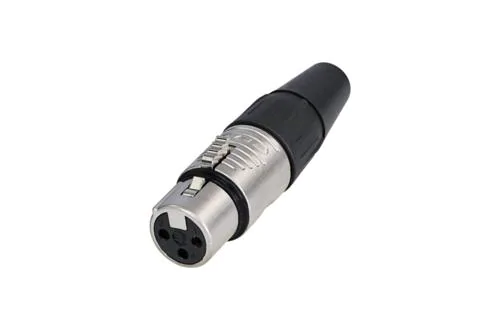

REAN RC3F
XLR HEMBRA 3P
Technical Information
Product
Title: RC3F
Connection Type: XLR
Gender: female
Electrical
Insulation Resistance: > 1.5 GO
Contact Resistance: = 5 mO
Rated Current: 10 A
Mechanical
Lifetime: >1000 Mating Cycles
Insertion Force: = 30 N
Withdrawal Force: = 20 N
Cable O.D.: 4 - 7 mm
Wiresize: 1.5 mm?
Wiresize: 16 AWG
Material
Plastic Body: PA6+30%GF UL94-HB
Jack: Bronze
Ground Contact: Steel
Rubber Ring: Rubber
Button: Zinc
Housing: Zinc
Chuck: POM
Push Ring: POM
Bushing: PA6+30%GF
Boot: PVC
Jack: Sliver Plating
Ground Contact: Tin and Cer
Button: Nickel Plating
Housing: Nickel Plating
