XLR MACHO 3P REAN RC3M

Código: A11071N Más info del producto
$ 6.800

Ver todos los medios de pago
Ingresá el Código Postal para ver tus opciones de Envío y Retiro:
Comprar Agregar al Carrito

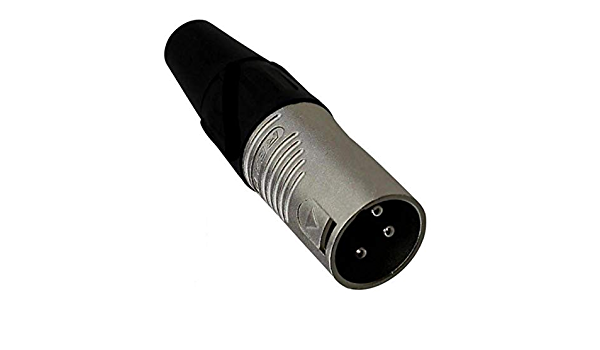

REAN RC3M
XLR MACHO 3P

Technical Information
Product
Title: RC3M
Connection Type: XLR
Gender: male
Electrical
Insulation Resistance: > 1.5 GO
Contact Resistance: = 5 mO
Rated Current: 10 A
Mechanical
Lifetime: >1000 Mating Cycles
Insertion Force: = 30 N
Withdrawal Force: = 20 N
Cable O.D.: 4 - 7 mm
Wiresize: 1.5 mm?
Wiresize: 16 AWG
Material
Pin: Brass
Male Insert: PA6+30%GF UL94-HB
Ground Contact: Bronze
Housing: Zinc
Chuck: POM
Push Ring: POM
Bushing: PA6+30%GF
Boot: PVC
Pin: Sliver Plating
Ground Contact: Tin and Cer
Housing: Nickel Plating
