Archer C86 Nuevo

AC1900 Wireless MU-MIMO Wi-Fi Router

• 802.11ac Wave2 Wi-Fi ? 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.
• 3?3 MIMO Technology ? Transmitting and receiving data on three streams to pair flawlessly with your 3?3 clients.
• Boosted Wi-Fi Coverage ? Beamforming technology and six external antennas deliver a highly efficient wireless connection.
• MU-MIMO ? To help your devices achieve optimal performance by making communication more efficient.
• Personalized Management ? Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
• Intelligent Connection ? Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.
•

•

• INALAMBRICO
  Est?ndares	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
  Velocidad WiFi	AC1900 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n)
  Rango WiFi	3 Bedroom Houses 6? Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
  Capacidad WiFi	Medium Dual-Band Allocate devices to different bands for optimal performance 3?3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation
  Modos de trabajo	Router Mode Access Point Mode

  HARDWARE
  Puertos ethernet	1? Gigabit WAN Port 4? Gigabit LAN Ports
  Botones	WPS/Wi-Fi Button Power On/Off Button Reset Button
  Energ?a	US Version 12 V ? 1.5 A EU Version 12 V ? 1 A

  SEGURIDAD
  Cifrado WiFi	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
  Seguridad de la red	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
  Red de invitados	1? 5 GHz Guest Network 1? 2.4 GHz Guest Network

  SOFTWARE
  Protocolos	IPv4 IPv6
  EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer C86 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More>
  Controles parentales	URL Filtering Time Controls
  Tipos de WAN	Dynamic IP Static IP PPPoE PPTP L2TP
  Calidad de servicio	QoS by Device
  Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
  NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
  IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
  DHCP	Address Reservation DHCP Client List Server
  DDNS	TP-Link NO-IP DynDNS
  Gesti?n	Tether App Webpage Check Web Emulator>

  OTRO
  Requisitos del sistema	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
  Certificaciones	FCC, CE, RoHS
  Ambiente	Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

  DATOS DE PRUEBA
  Potencia de transmisi?n WiFi	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz & 5GHz)
  Sensibilidad de recepci?n WiFi	5GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm 2.4GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm

  F?SICO
  Dimensiones (Al x An x Pr)	9.1 ? 5.1 ? 1.5 in (229.9 ? 144.2 ? 37.2 mm)

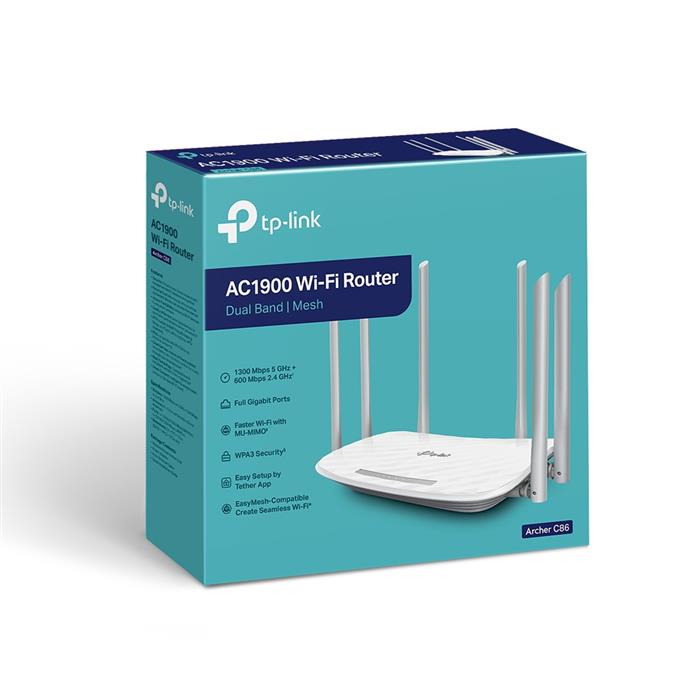

  contenidos del paquete	Wi-Fi Router Archer C86 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
